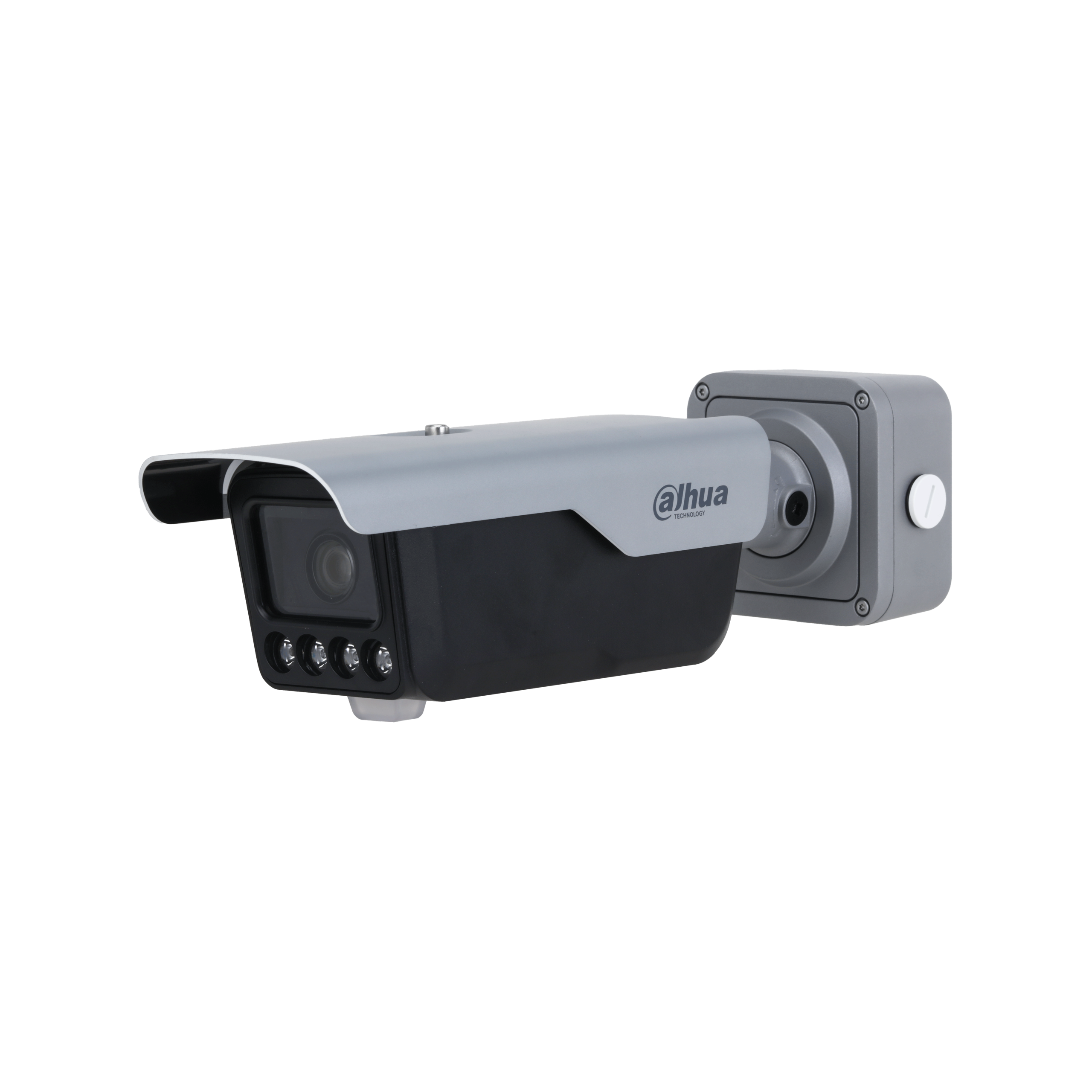

Dahua DHI-ITC413-PW4D-Z1 – 4MP ANPR License Plate Recognition Camera
Enhance vehicle monitoring and automated security with the Dahua DHI-ITC413-PW4D-Z1, a high-performance 4MP License Plate Recognition (LPR) camera designed for automatic number plate recognition (ANPR) in both day and night conditions. Built for traffic management, parking systems, and access control applications, this intelligent camera delivers accurate, real-time plate capture, even in high-speed or low-light scenarios.
📷 Key Features & Benefits:
-
4MP High-Definition Resolution
Captures clear and detailed images of license plates and vehicle features with its 2688 × 1520 resolution. -
Integrated ANPR Engine
Built-in AI-powered ANPR technology for automatic number plate detection, recognition, and storage without needing external software. -
Motorized Zoom Lens (2.7–12mm)
Offers flexible optical zoom for adjustable monitoring range and plate recognition at varying distances. -
Superior Low-Light Performance
Advanced Starlight technology ensures accurate recognition and crisp images even in ultra-low light environments. -
IR Illumination
Built-in powerful infrared LEDs provide enhanced visibility for plate recognition up to 40 meters at night. -
Multiple Detection Modes
Supports triggered capture via video, loop, coil, or radar detection—ideal for customized deployments. -
High-Speed Capture
Supports plate recognition of vehicles moving at speeds up to 80 km/h, making it suitable for gated communities, parking lots, toll stations, and city roads. -
Weatherproof Housing (IP67)
Built with a rugged IP67-rated enclosure, the camera withstands dust, rain, and harsh outdoor conditions.
📦 Technical Specifications:
Feature | Specification |
---|---|
Model | DHI-ITC413-PW4D-Z1 |
Resolution | 4MP (2688 × 1520) |
Sensor | 1/1.8” CMOS Image Sensor |
Lens | 2.7–12mm Motorized Varifocal Lens |
IR Distance | Up to 40m |
Minimum Illumination | 0.002 Lux (Color), 0 Lux with IR |
Recognition Speed | ≤ 80 km/h |
Trigger Mode | Video, Coil, Radar, Loop |
Storage | Supports TF card up to 128GB |
Ingress Protection | IP67 |
Power Supply | DC 12V ±25%, AC 24V ±25%, or PoE+ |
Operating Temperature | –30°C to +60°C |
Smart Features | Vehicle detection, LPR/ANPR, vehicle metadata capture, black/white list management |
🎯 Ideal Applications:
-
Toll Booths & Highway Monitoring
-
Gated Residential Communities
-
Smart Parking Systems
-
Commercial Entrances
-
Government & Law Enforcement Checkpoints
Boost your surveillance system with the Dahua DHI-ITC413-PW4D-Z1 — the smart choice for real-time, high-accuracy license plate recognition in diverse environments and traffic scenarios.
