DH-WBC5-90AC-01P

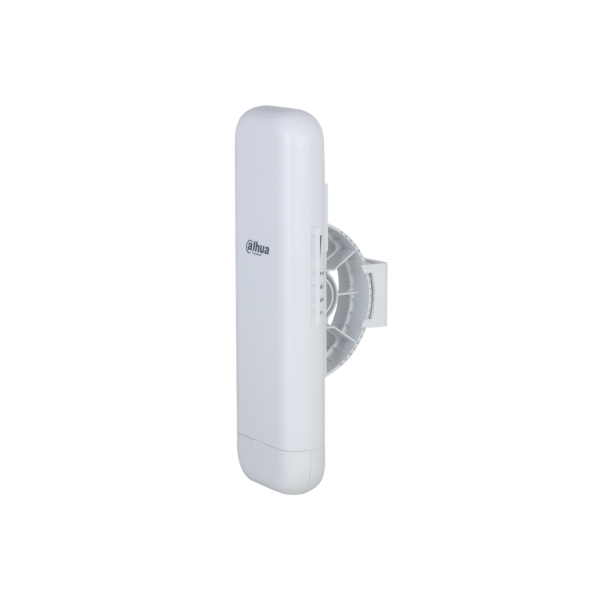

Dahua DH-WBC5-90AC-01P Wireless Bridge

The Dahua DH-WBC5-90AC-01P is a high-performance 5GHz outdoor wireless bridge designed for stable, long-distance point-to-point and point-to-multipoint wireless transmissions. With its powerful antenna, robust housing, and advanced networking features, this bridge provides a reliable solution for extending networks in security, enterprise, and industrial applications.

Key Features:

• Long-Range Wireless Transmission – Supports stable data transfer up to 5 km (line-of-sight).

• High-Speed Connectivity – Offers wireless speeds of up to 867 Mbps on the 5GHz band, ensuring smooth HD video transmission and low-latency networking.

• 90° Sector Coverage – Equipped with a high-gain 90° directional antenna, making it suitable for point-to-multipoint deployments.

• Robust Outdoor Design – IP65-rated weatherproof housing ensures durability in harsh outdoor conditions.

• Seamless Integration – Optimized for Dahua video surveillance systems, ensuring reliable camera backhaul.

• Secure and Reliable – WPA2 encryption and advanced QoS settings guarantee secure, interference-free operation.

• Easy Installation – Supports PoE power supply, simplifying deployment and reducing cabling costs.

Technical Specifications:

• Model: Dahua DH-WBC5-90AC-01P

• Frequency Band: 5 GHz (IEEE 802.11a/n/ac)

• Maximum Data Rate: Up to 867 Mbps

• Transmission Range: Up to 5 km (line-of-sight)

• Antenna: 90° sector high-gain directional antenna

• Interface: 1 × 10/100/1000 Mbps Ethernet port

• Power Supply: Passive PoE (24V)

• Weather Rating: IP65 outdoor protection

• Operating Temperature: -30°C to +65°C

• Security: WPA2-PSK, AES encryption

Applications:

• Long-range wireless surveillance backhaul

• Point-to-multipoint networking in campuses, factories, and warehouses

• Wireless connectivity for industrial parks and large outdoor areas

• Rural or temporary internet deployment solutions

• Multi-camera video transmission in outdoor environments

✅ The Dahua DH-WBC5-90AC-01P combines long-distance capacity, high bandwidth, and wide coverage in a rugged design—making it a reliable wireless bridge for professional-grade surveillance and enterprise networking.
