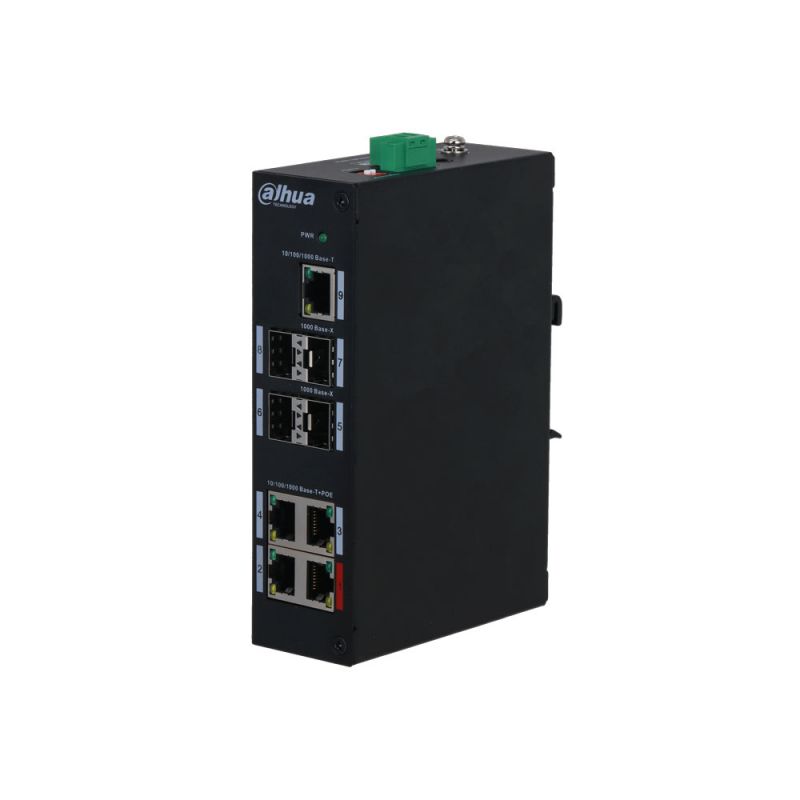

Dahua DH-PFS3409-4GT-96-V2 Industrial PoE Switch

The Dahua DH-PFS3409-4GT-96-V2 is a high-performance industrial-grade managed PoE switch designed to deliver reliable data transmission and stable power supply for IP surveillance, networking, and industrial applications. With advanced networking features, rugged build quality, and wide temperature adaptability, it ensures continuous operation in demanding environments.


Key Features:

  • 9-Port Gigabit PoE Switch – Includes 4 × Gigabit PoE ports + 4 × Gigabit RJ45 ports + 1 × Gigabit SFP slot, supporting flexible networking.

  • High PoE Power Budget – Delivers up to 96W total PoE output, supporting IEEE 802.3af/at standards for powering IP cameras, access points, and other PoE devices.

  • Industrial-Grade Design – Fanless, durable metal housing with DIN-rail or wall-mount installation options.

  • Wide Operating Temperature – Works reliably in -40°C to +75°C extreme conditions.

  • Stable Transmission – Enhanced anti-interference performance for industrial and outdoor networking.

  • Smart Management – Supports QoS, VLAN, storm control, link aggregation, port mirroring, and more for flexible network control.

  • Plug & Play Deployment – Easy installation with PoE auto-sensing and seamless integration with Dahua IP surveillance systems.


Technical Specifications:

  • Model: Dahua DH-PFS3409-4GT-96-V2

  • Ports:

    • 4 × Gigabit PoE (RJ45, IEEE 802.3af/at)

    • 4 × Gigabit RJ45 (non-PoE)

    • 1 × Gigabit SFP uplink

  • PoE Power Supply: Up to 30W per port (total budget: 96W)

  • Backplane Bandwidth: 18 Gbps

  • Switching Capacity: 13.4 Mpps

  • Installation: DIN-rail or wall-mounted

  • Enclosure: Fanless metal housing, industrial design

  • Operating Temperature: -40°C ~ +75°C

  • Power Input: 48–57V DC (redundant dual power supply supported)

  • Dimensions: Compact industrial form factor


Applications:

  • Industrial Networking: Factories, power stations, and transportation systems

  • IP Surveillance: Outdoor and industrial camera deployments requiring PoE

  • Enterprise Networking: Warehouses, campuses, and smart buildings

  • Harsh Environments: Reliable performance in extreme temperature conditions

  • Wireless Infrastructure: Powering outdoor APs and wireless bridges


✅ The Dahua DH-PFS3409-4GT-96-V2 is a rugged, efficient, and smart PoE switch built for industrial surveillance and critical infrastructure—delivering stable networking and power even in the toughest environments.
